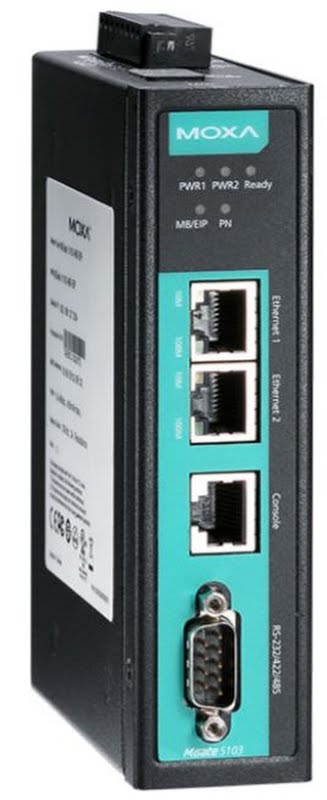

MGate 5103 | 1 Port Modbus RTU/ASCII/TCP/EtherNet/IP to PROFINET Gateways

Multi-Protokoll Gateway zu Profinet
  • Supports PROFINET IO devices
  • Supports Modbus RTU/ASCII/TCP master/slave configurations
  • Effortless configuration via web-based wizard
  • Supports EtherNet/IP Adapter
  • Complete diagnosis information for maintenance
  • Embedded Modbus traffic monitoring
  • microSD card for configuration backup and event logs
  • -40 to 75°C wide operating temperature models available
  • Modbus port with 2 kV built-in isolation protection
  • Built-in Ethernet cascading for easy wiring
  • Security features based on IEC-62443

The MGate 5103 is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP, EtherNet/IP, and PROFINET network communications. Tointegrate existing Modbus devices onto a PROFINET network, usethe MGate 5103 as a Modbus master/slave or EtherNet/IP adapter to collect data and exchange data with PROFINET devices. The latestexchange data will be stored in the gateway as well. The gatewayconverts stored Modbus or EtherNet/IP data into PROFINET packets so the PROFINET IO controller can control or monitor field devices.

Easy Configuration via Web Console
The MGate 5103 series comes with an illustrated Quick Setup guide designed to make configuration easy. With Quick Setup, you can easily access protocol conversion modes and finish the configuration in a few steps. The MGate 5103 series also supports a GSDML export function. GSDML files can be imported into PROFINET PLCs to save time on PLC configuration.

Modbus RTU/ASCII/TCP Protocol Traffic Monitor
MGate 5103 series gateways support Modbus RTU/ASCII/TCP Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. Communication issues could be caused by incorrect software parameters, such as slave IDs and register addresses, or incorrect command configuration. With Modbus RTU/ASCII/TCP Protocol Traffic Monitor, you can check the captured data and easily identify the root cause.

Maintenance Functions
MGate 5103 series gateways provide a web console and Telnet console for remote maintenance. Encryption communication functions, including HTTPS and SSH, are supported to provide better network security. In addition, firmware log functions are provided to record connection events and Modbus maintenance events. Users can review log data remotely through the web console.

Gesamten Text anzeigen

Downloads

Artikel Downloads / Links Preis Anzahl
01020636 : MGate 5103 CHF 524.00
01020637 : MGate 5103-T CHF 655.00
