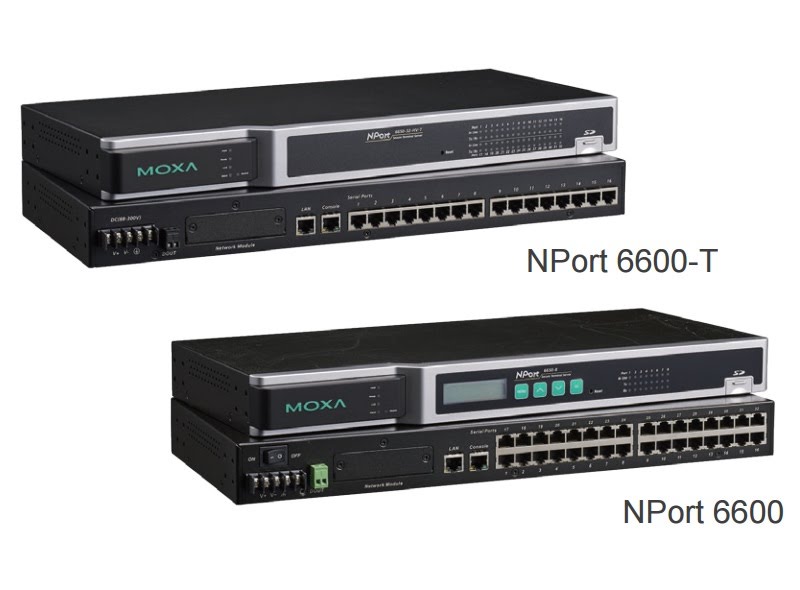

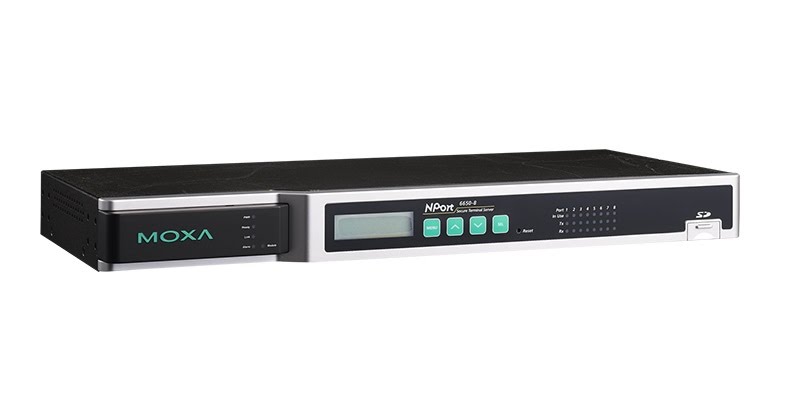

NPort 6610/NPort 6650 Serie | 8/16/32 Ports RS-232/422/485 rackmount terminal servers

Features

  • Up to 32 ports for high density environments
  • Port buffers for storing serial data when the Ethernet is off-line
  • Supports IPv6
  • Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
  • Modular design for scalability
  • DES/3DES/AES for highly secure data transmissions
  • Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
  • Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)

Overview

The NPort® 6600 series of secure device servers is the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6600 ensures data transmission integrity with support of DES, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort® 6600, and each serial port on the NPort® can be configured independently for RS-232, RS-422, or RS-485 transmission.

Legende

  • 8/16/32 serielle Ports (nur RS-232 oder RS-232/422/485)
  • mit Dual-LAN 10/100BaseT(X)
  • mit 230 VAC / 48 VDC / HV=high VDC Power
  • Betriebstemperaturbereich von 0 bis 55°C und (T-Modelle) von -40 bis 75°C
Gesamten Text anzeigen

Downloads

Artikel Downloads / Links Preis Anzahl
01020218 : NPort 6610-8, 8 Ports RS-232 Secure Server CHF 1’080.00
01020219 : NPort 6610-8-48V, 8 Ports RS-232 Secure Server CHF 1’129.00
01020212 : NPort 6610-16, 16 Ports RS-232 Secure Server CHF 1’404.00
01020213 : NPort 6610-16-48V, 16 Ports RS-232 Secure Server CHF 1’426.00
01020214 : NPort 6610-32, 32 Ports RS-232 Secure Server CHF 1’751.00
01020217 : NPort 6610-32-48V, 32 Ports RS-232 Secure Server CHF 1’938.00
01020215 : NPort 6650-8, 8 Ports RS-232/422/485 Secure Server CHF 1’259.00
01020045 : NPort 6650-8-T, 8 Ports RS-232/422/485 Server CHF 1’570.00
01020223 : NPort 6650-8-48V, 8 Ports RS-232/422/485 Server CHF 1’155.00
01020280 : NPort 6650-8-HV-T, 8 Ports RS-232/422/485 Server CHF 1’463.00
01020216 : NPort 6650-16, 16 Ports RS-232/422/485 Server CHF 1’279.00
01020044 : NPort 6650-16-T, 16 Ports RS-232/422/485 Server CHF 2’046.00
01020220 : NPort 6650-16-48V, 16 Ports RS-232/422/485 Server CHF 1’279.00
01020278 : NPort 6650-16-HV-T, 16 Ports RS-232/422/485 Server CHF 1’665.00
01020221 : NPort 6650-32, 32 Ports RS-232/422/485 Server CHF 1’823.00
01020222 : NPort 6650-32-48V, 32 Ports RS-232/422/485 Server CHF 1’924.00
01020279 : NPort 6650-32-HV-T, 32 Ports RS-232/422/485 Server CHF 1’979.00
