Moxa

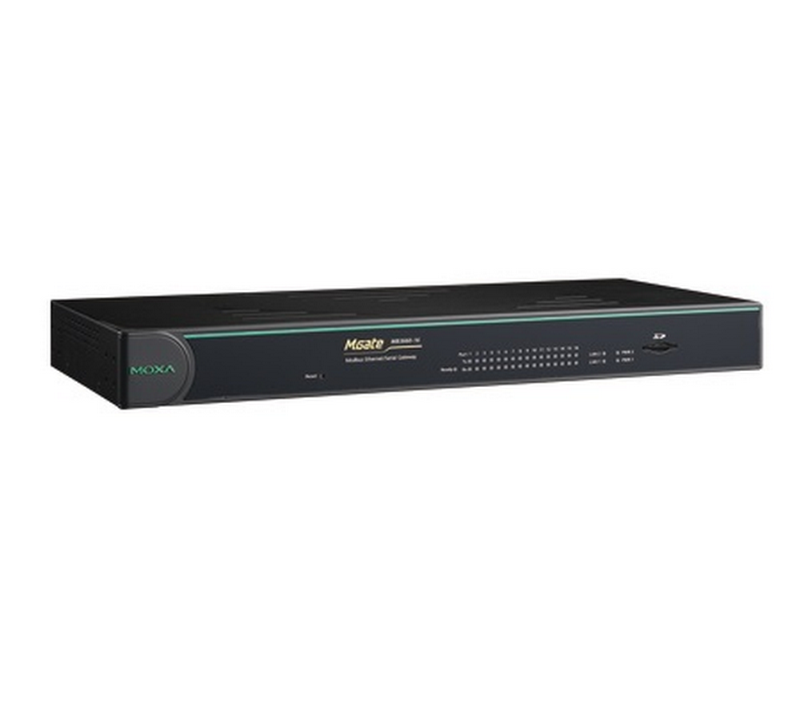

MGate MB3660 Series | 8/16 Ports redundant Modbus gateways

Features and Benefits

  • Innovative Command Learning eliminates the need to key-in SCADA Modbus commands (acts as an agent gateway)
  • High performance through active and parallel polling of serial devices
  • Supports serial (Master) to serial (Slave) communication
  • 2 Ethernet ports with the same IP or dual IP addresses
  • SD card for configuration backup
  • Access by up to 256 TCP master/client devices, or connect to 128TCP slave/server devices
  • Dual VDC or VAC power inputs with wide power input range
  • 3-pin fault relay circuit for event alarms

Overview

The MGate MB3660 (MB3660-8 and MB3660-16) series gateways are redundant Modbus gateways that convert between the Modbus TCP and Modbus RTU/ASCII protocols. They can be accessed by up to 256 TCP master/client devices, or connect to 128 TCP slave/server devices. The MGate MB3660 series isolation model provides 2 kV isolation protection suitable for power substation applications. The MGate MB3660 gateways are designed to easily integrate Modbus TCP and RTU/ASCII networks. The MGate MB3660 series gateways offer features that make network integration easy, customizable, and compatible with almost any Modbus network. For large-scale Modbus deployments, MGate MB3660 gateways can effectively connect a large number of Modbus nodes to the same network. The MB3660 series can physically manage up to 248 serial slave nodes for 8-port models or 496 serial slave nodes for 16-port models (the Modbus standard only defines Modbus IDs from 1 to 247). Each RS-232/422/485 serial port can be configured individually for Modbus RTU or Modbus ASCII operation and for different baudrates, allowing both types of networks to be integrated with Modbus TCP through one Modbus gateway.

Legende

  • Modbus gateway mit Dual LANs
  • mit Dual AC power / DC Power
  • mit 8/16 Port RS-232/422/485
  • 2 kV isolation (I-Modelle)
Gesamten Text anzeigen

Downloads

Artikel Downloads / Links Preis Anzahl
01020524 : MGate MB3660-8-2AC CHF 1’447.00
01020525 : MGate MB3660-8-2DC CHF 1’535.00
01020526 : MGate MB3660I-8-2AC CHF 1’764.00
01020522 : MGate MB3660-16-2AC CHF 1’819.00
01020523 : MGate MB3660-16-2DC CHF 1’907.00
