Moxa

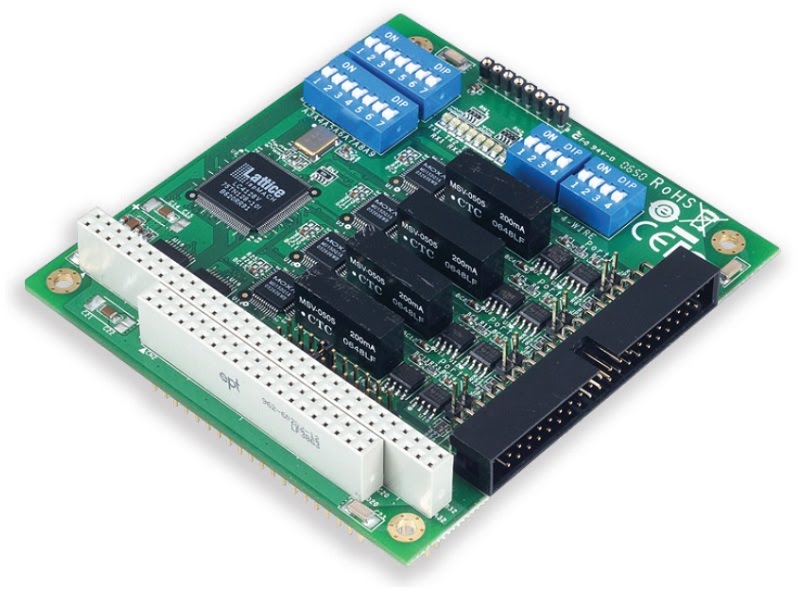

CB-134I | 4 Ports RS-422/485 PC/104-Plus Module mit 2 KV Isolation

Features and Benefits

  • 921.6 Kbps maximum baudrate for super fast data transmission
  • On-chip H/W and S/W flow control
  • Built-in 15 KV ESD protection
  • Serial interface is DIP switch selectable
  • Onboard Tx and Rx LED indicators for each port
  • Widows (XP/Vista/7), Windows CE 5.0/6.0, and Windows XP embedded operating systems supported
  • Wide temperature model available for -40 to 85°C environments

Overview

The CB-134I PC/104-Plus module comes with 4 RS-422/485 ports, and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and the CB-134I's versatile driver support makes the module suitable for a wide range of applications. The CB-134Imodule can be used on the PC/104-Plus (PCI) bus, and provides a reliable, high performance solution for multiport serial communication.

Gesamten Text anzeigen

Downloads

Artikel Downloads / Links Preis Anzahl
01030263 : CB-134I, 4-port RS-422/485, PC/104-Plus, 2KV CHF 448.00
01030264 : CB-134I-T, 4-port RS-422/485, PC/104-Plus -40-85° CHF 570.00
