Moxa

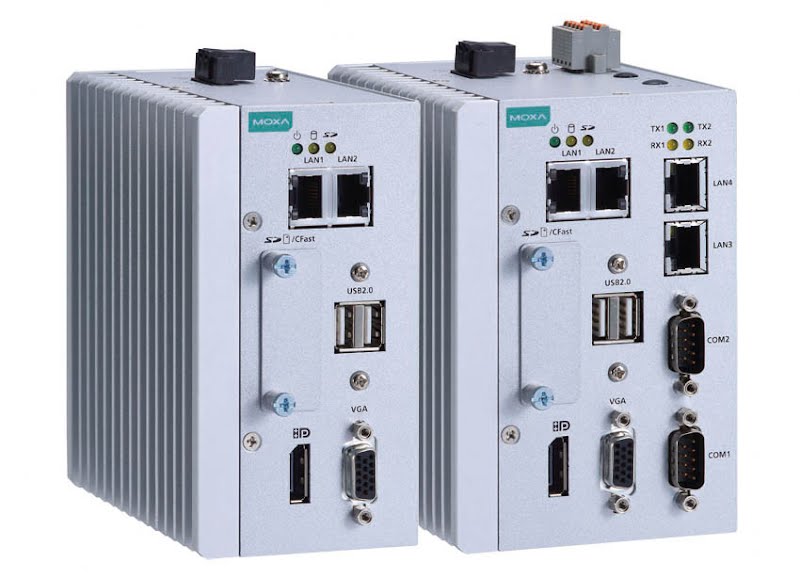

MC-1100 Serie | Quad-core fanless DIN-rail automation computer

Features

  • Dual-storage (SD and CFast slots)
  • Dual-independent displays (VGA + display port)
  • Variety of interfaces: 2 serial ports, 4 Giga LAN, 4 DIs, 4 DOs, 2 USB2.0
  • Mini-PCIe sockets for WiFi, 3G, LTE, GPS
  • 12 to 36 VDC, wide range isolated power
  • -40 to 70°C system operating temperature range
  • Moxa SmartRecovery utility to recover system from boot failure (W7E only)
  • Marine-grade and Zone 2 compliance

Introducton

The Moxa MC-1100 series DIN-rail, fanless, x86 embedded computers are based on the Intel® Atom™ E3800 series processor, feature the most reliable I/O design to maximize connectivity, and support wireless modules (WiFi/3G/LTE), making them suitable for a diverse range of communication applications.

Powered by a wide operating temperature range (-40 to 70°C) and Safety/EMI/EMS compliances, the MC-1100 series is ideal for intelligent computing and communication solutions in critical environments, including marine communication, oil & gas field site monitoring, and transportation.

The MC-1100 series supports “Moxa Hardware Monitoring” for device I/O status monitoring and alerts, system temperature monitoring and alerts, and system power management. Monitoring system status closely makes it easier to recover from errors and provides the most reliable platform for your applications.

Gesamten Text anzeigen

Downloads

Artikel Downloads / Links Preis Anzahl
01070640 : MC-1111-E2-T CHF 1'006.00
01070641 : MC-1111-E4-T CHF 1'071.00
01070642 : MC-1121-E2-T CHF 1'221.00
01070643 : MC-1121-E4-T CHF 1'285.00
01070644 : MC-1121-E4-T-W7E CHF 1'296.00
01070645 : MC-1112-E2-T CHF 987.00
01070646 : MC-1112-E4-T CHF 1'038.00
01070655 : MC-1122-E2-T CHF 1'181.00
01070656 : MC-1122-E4-T CHF 1'231.00
01070657 : MC-1122-E4-TPM-T CHF 1'231.00
01100750 : MC-1100 DIN-Rail Kit CHF 8.00
01100751 : MC-1100 Wallmount Kit CHF 10.00

Zubehör Produkte

Moxa

CELLULAR-LTE-EU / WiFi Module

Moxa

ANT-LTE

Moxa

diverse ANT

Moxa

PWR, Power Adaptors für MOXA

Moxa

PWC-C7EU-2B-183 - Power cord with 2-pin connector, Euro plug
